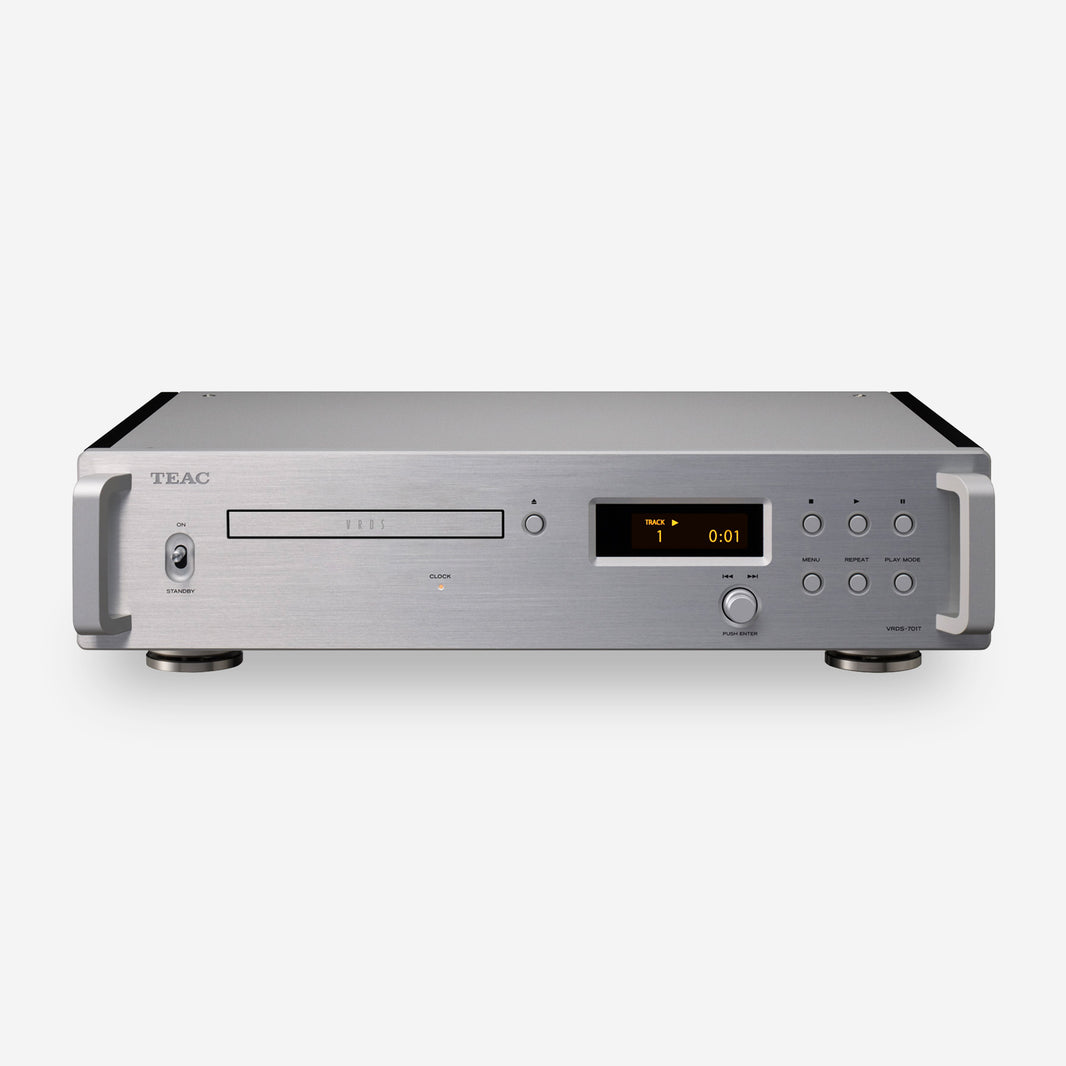

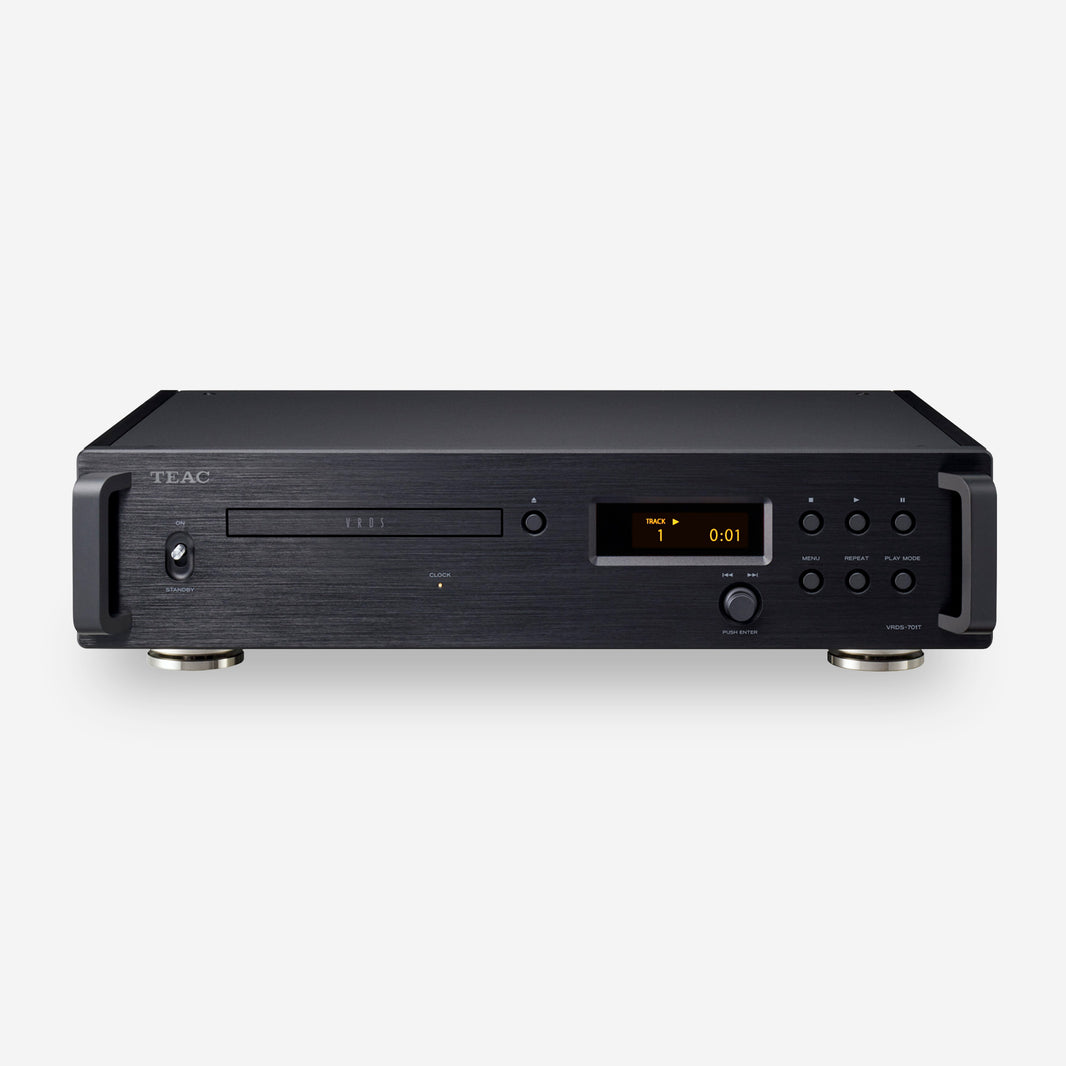

VRDS-701T - CD Transport
InquireThe VRDS-701T is a commemorative CD transport model that celebrates TEAC’s 70th anniversary. Utilizing our newly-developed VRDS mechanism, it can maximize the true capabilities of a system when used in combination with a DAC.
The VRDS-701T CD transport utilizes our newly-developed VRDS mechanism.
The VRDS is a TEAC-original CD drive mechanism that reduces rotation vibration and other unwanted vibration
by clamping the CD to an aluminum turntable with the same diameter in order to maximize inertial mass.
Used in combination with a UD-701N, which is part of the same series, playback is possible
using the discrete DAC in the UD-701N as well as with MQA full decoding.
Of course, you can also use it together with a DAC of your choosing, and build a system as you like.
The inclusion of a 10MHz clock input enables flexible integration
with systems that are synchronized using an external clock.
| Technical Specifications | |
|---|---|
| CD section | |
| Supported media | Audio CD, CD (CD-R/CD-RW) * 8cm CDs not supported. |
| Digital audio outputs | |
| COAXIAL | Connector: RCA × 1 Output level: 0.5Vp-p Output impedance: 75Ω |
| OPTICAL | Connector: TOS (JEITA RC5720C) × 1 |
| Clock sync input | |
| Connector | BNC × 1 |
| Input frequency | 10MHz |
| Input impedance | 50Ω |
| Input level | Rectangle wave: Equivalent to TTL level Sine wave: 0.5 to 1.0Vrms |
| External control | |
| Trigger input (12V TRIGGER IN) | Connector: 3.5mm Mono mini jack × 1 Input level: 12V, 1mA |
| Trigger output (12V TRIGGER THRU) | Connector: 3.5mm Mono mini jack × 1 Output level: 12V Maximum current supply: 100mA |
| Power | |
| AC120V, 60Hz AC220 - 240V, 50/60Hz |
|
| Power consumption | 10W |
| Standby power | 0.4W |
| Overall dimensions | 444 (W) × 111 (H) × 333 (D) mm (including protrusions) |
| Weight | 10.1kg |
| Operating temperature | +5℃ to +35℃ |
| Operating humidity | 5% to 85% (no condensation) |
| Storage temperature range | –20℃ to +55℃ |
| Included accessories | AC cord, Remote control (RC-1338), AAA batteries × 2, Foot pads × 3, Owner's manual |
"Our goal has always been to record the musician's performance and the engineer's intentions faithfully to deliver them clearly to the listener's ears. We have created numerous audio products with this goal in mind. From the early days of reel-to-reel decks to today's digital age of high-resolution playback, media has changed dramatically, but TEAC's vision remained the same. We are committed to continue to provide products that are made with the utmost care and attention, for people just like you who love music."
