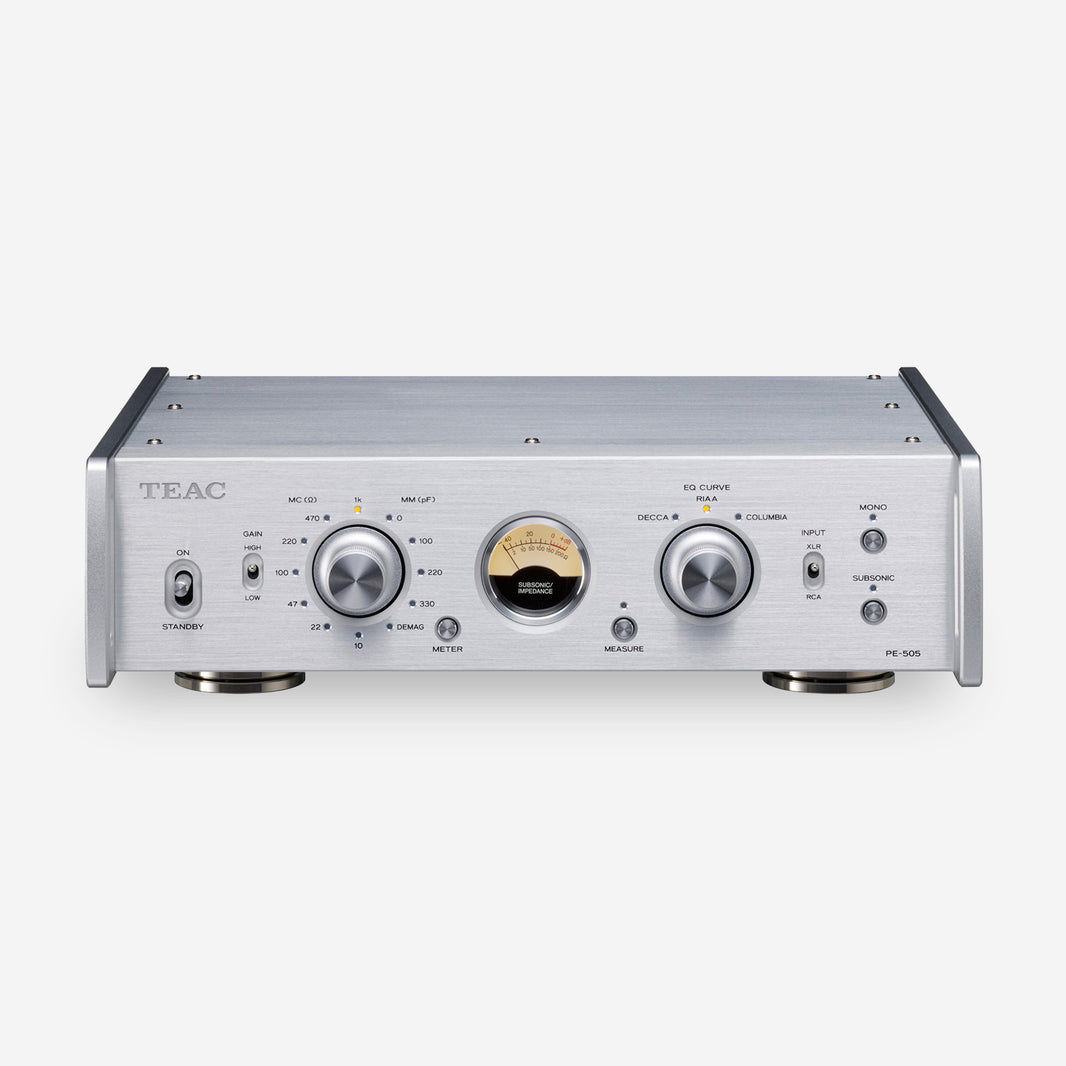

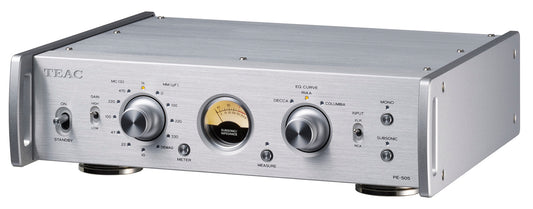

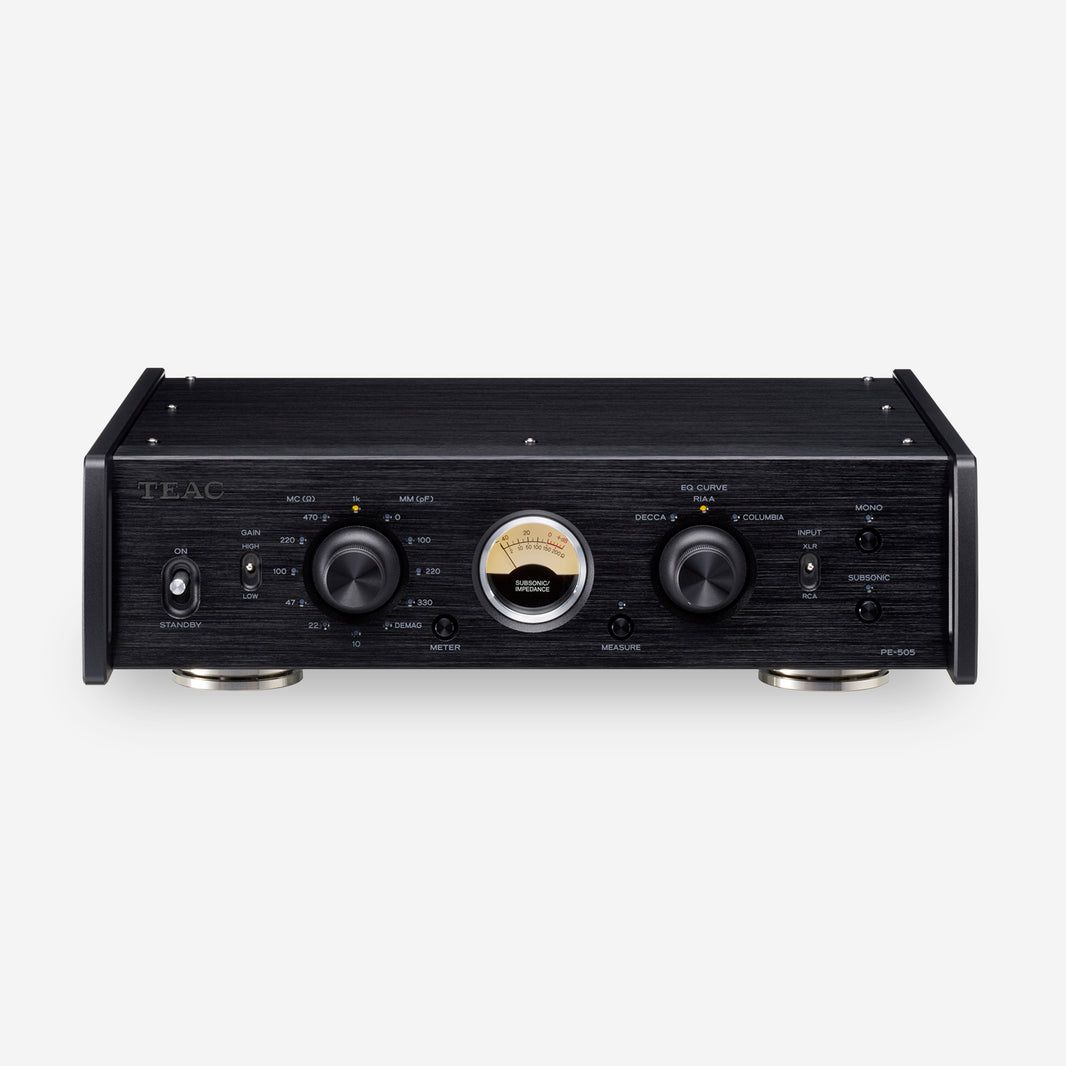

PE-505 - Fully-balanced Phono Amplifier
InquirePhono equalizing amplifier
with dual monaural and fully-balanced input/output circuit design.
The PE-505 is a phono equalizing amplifier with dual monaural and fully-balanced input/output circuits that support balanced MC input.
The development of the PE-505 was achieved by relying on TEAC’s audio technology expertise, focusing on recording and playback, with the goal of accurately reproducing the original intent of the recording producers. The PE-505 will amplify even very faint audio signals picked up by the cartridge, process them without coloration, and then deliver them faithfully in order to keep the listener as close as possible to the original sound that was played before it was engraved on the master disc.
The high precision RIAA correction circuit, as well as both DECCA and COLUMBIA curves are supported. In addition, selectable load resistance for MC cartridges and load capacity for MM cartridges are present; allowing users to optimize the settings for the type of cartridge used and for the condition of the record.
| Technical Specifications | |
|---|---|
| Phono input section | |
| Unbalanced input |
Connector: RCA Pin (MC/MM compatible) × 1 pair Max input level: 150mV (MM, THD 0.1%, GAIN Low) |

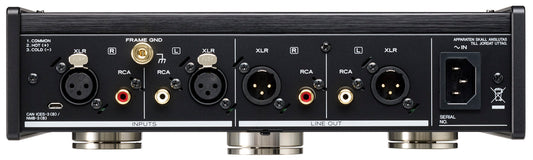

| Balanced input | Connector: XLR × 1 pair (MC only) |
| Input impedance |
MM: 47kΩ MC: 10Ω / 22Ω / 47Ω / 100Ω / 220Ω / 470Ω / 1kΩ |
| Input capacitance | MM: 0 / 100 / 220 / 330pF |
| Gain |
Low: MM: 34dB MC: 54dB High: MM: 46dB MC: 66dB |
| Analog audio outputs | |
| Unbalanced |
Connector: RCA Pin × 1 pair Output level: 2.0Vrms Output impedance: 63Ω |
| Balanced |
Connector: XLR × 1 pair Output level: 4.0Vrms Output impedance: 126Ω |
| Audio performance | |
| Total harmonic distortion |
MM: 0.002% MC: 0.02% |
| S/N ratio |
MM: 106dB (RCA) MC: 86dB (XLR) |
| RIAA deviation | ±0.05dB (20Hz to 20kHz) |
| Residual noise |
MM: 10µV MC: 65µV (RCA), 85µV (XLR) |
| Channel separation | –90dB or better (MM, 10kHz, GAIN Low) |
| Functions | |
| Equalization curves | RIAA, DECCA, COLUMBIA |
| Subsonic filter | 17Hz, –24dB/octave :contentReference[oaicite:1]{index=1} |
| Other functions |
Subsonic detection MONO function DEMAG function Load resistance measurement |
| Power | |
|
AC120V, 60Hz AC220 - 240V, 50/60Hz |
|
| Power consumption | 14W |
| Overall dimensions | 290 (W) × 84.5 (H) × 252.5 (D) mm |
| Weight | 4.5kg |
| Operating temperature | ＋5℃ to ＋35℃ |
| Operating humidity range | 5% to 85% (no condensation) |
| Storage temperature range | –20℃ to ＋55℃ |
| Included accessory | Power cord, Foot pads × 3, Owner's manual |
