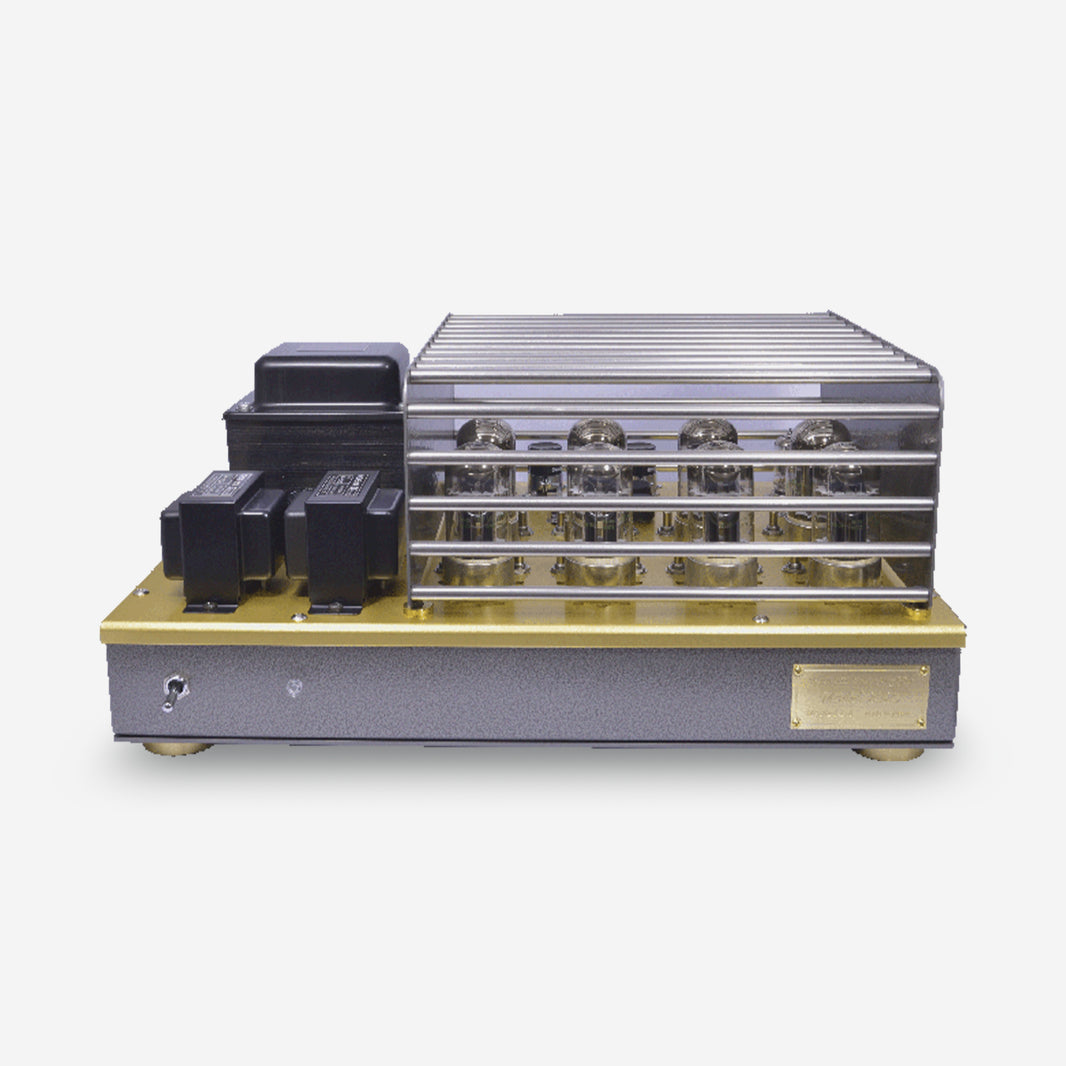

Introducing the Miyajima MODEL2020
—
The MODEL2020 is Miyajima’s OTL power amplifier, built with handmade wiring and without the use of a circuit board. It uses eight 6080WC output tubes and includes switching for mono or stereo operation, as well as on/off control for NFB.
Miyajima describe the sound as clear, powerful and obedient to the music, and emphasise the amplifier’s very wide frequency range and long life. All vacuum tubes are made in the USA, while the transformer is made in Japan.
—
Miyajima note that export can be difficult because electrical safety standards differ by country, so local wholesalers may need to obtain relevant certification where required.
Specs
| Product Type | OTL Power Amplifier |
| Model | MODEL2020 |
| Output Tubes | 6080WC × 8 |
| Construction | Handmade wiring, no circuit board used |
| Switching | MONO / STEREO and NFB on/off (-2dB) |
| Frequency Response | 10Hz – 100,000Hz (-1dB, 1W, non-NFB) |
| Extended Frequency Response | 10Hz – 250,000Hz (-3dB, 1W, non-NFB) |
| Output (non-NFB) | Stereo 16Ω (12W+12W), 8Ω (7W+7W), Mono 8Ω (16W), Mono 4Ω (13W) |
| Output (NFB) | Stereo 16Ω (15W+15W), 8Ω (9W+9W), Mono 8Ω (22W), Mono 4Ω (18W) |
| Weight | About 18.5 kg |
| Dimensions | About W450 × H220 × D340 mm |
| Tube Origin | Made in USA |
| Transformer Origin | Made in Japan |
Our philosophy is to skillfully build superior audio components that will reproduce recorded sound so faithfully, that the artists personality and the emotions in their music are perfectly expressed to the listener. Exceptionally fine audio components will result when music can be reproduced with accuracy and without distortion. When matching theory and musicality, good products are created. We at Miyajima laboratory believe that although we are small, our dedication to the fine details allow us to build the very finest sounding components – ones that will bring you joy every time you to listen to music.
