• Ongaku Integrated Amplifier
  • Ongaku Integrated Amplifier
Audio Note

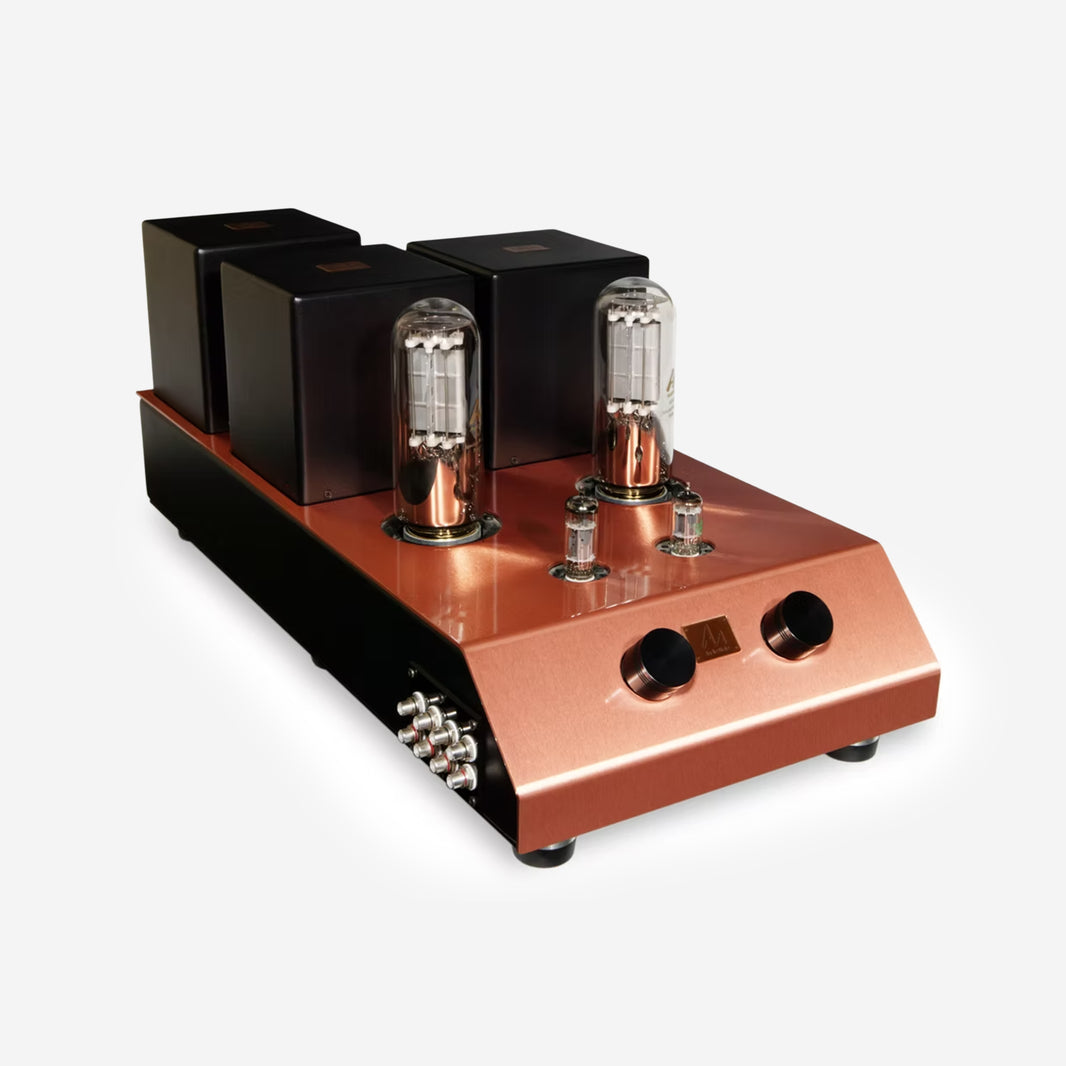

Ongaku Integrated Amplifier

Inquire

The ONGAKU has rightly earned a place in history; its name is synonymous with the finest possible audio reproduction, and for once the reality is equal to the Legend!

It is a Pure Class A Single Ended valve amplifier that uses the highly regarded 211 / VT-4C triode valve, producing a level of performance that is radically superior to any other current designs.

Only the finest possible components have been employed: -

Audio Note (UK) silver wire has been used exclusively for all internal wiring, including all transformers and power supply connections.
Audio Note two watt Tantalum resistors have been used throughout.
All capacitors are either Black Gate Electrolytic or Audio Note (UK) silver foil.
All transformers are our own in-house custom designed and manufactured devices; driver and output transformers are fully silver wired AN-Perma 50 nickel C-core and the mains transformer is a fully silver wired HiB double C core.

No integrated amplifier has ever produced the levels of musical purity delivered by the ONGAKU… It is without doubt the finest possible integrated amplifier available today.

It has been specifically engineered for sonic performance rather than technical specification, and fulfils all Audio Note (UK) Level 5 criteria: -

Pure Class A operation
Zero Negative Feedback
Single Ended Output Stage
Valve Rectification
Directly Heated Triode operation
Materials and component quality

INPUT IMPEDANCE 100K Ohm, line level
INPUT SENSITIVITY 450mV for full output
MAXIMUM OUTPUT 20 Watts (approx.) per channel into 4 or 8 Ohm loads
CHANNEL BALANCE +/- 0.3dB
VALVE COMPLEMENT 2 x 5R4WGB
2 x 211 / GE VT-4C
1 x CV4068
1 x 6463
UNIT WEIGHT 48 kg
UNIT DIMENSIONS 305mm (h) x 305mm (w) x 640mm (d)
MAINS INPUT AC 100-120V / 220-240V 50/60Hz
MAX. POWER CONSUMPTION 200W

Finish

Inquire

Audio Note are manufacturers of the finest domestic audio reproduction equipment money can buy, using the best available technology and the finest components. The largest European manufacturer of ultra-performance valve-based audio equipment, Audio Note maintains a world-class standard of quality by keeping as many manufacturing processes in house, including winding their own transformers and foil capacitors.
