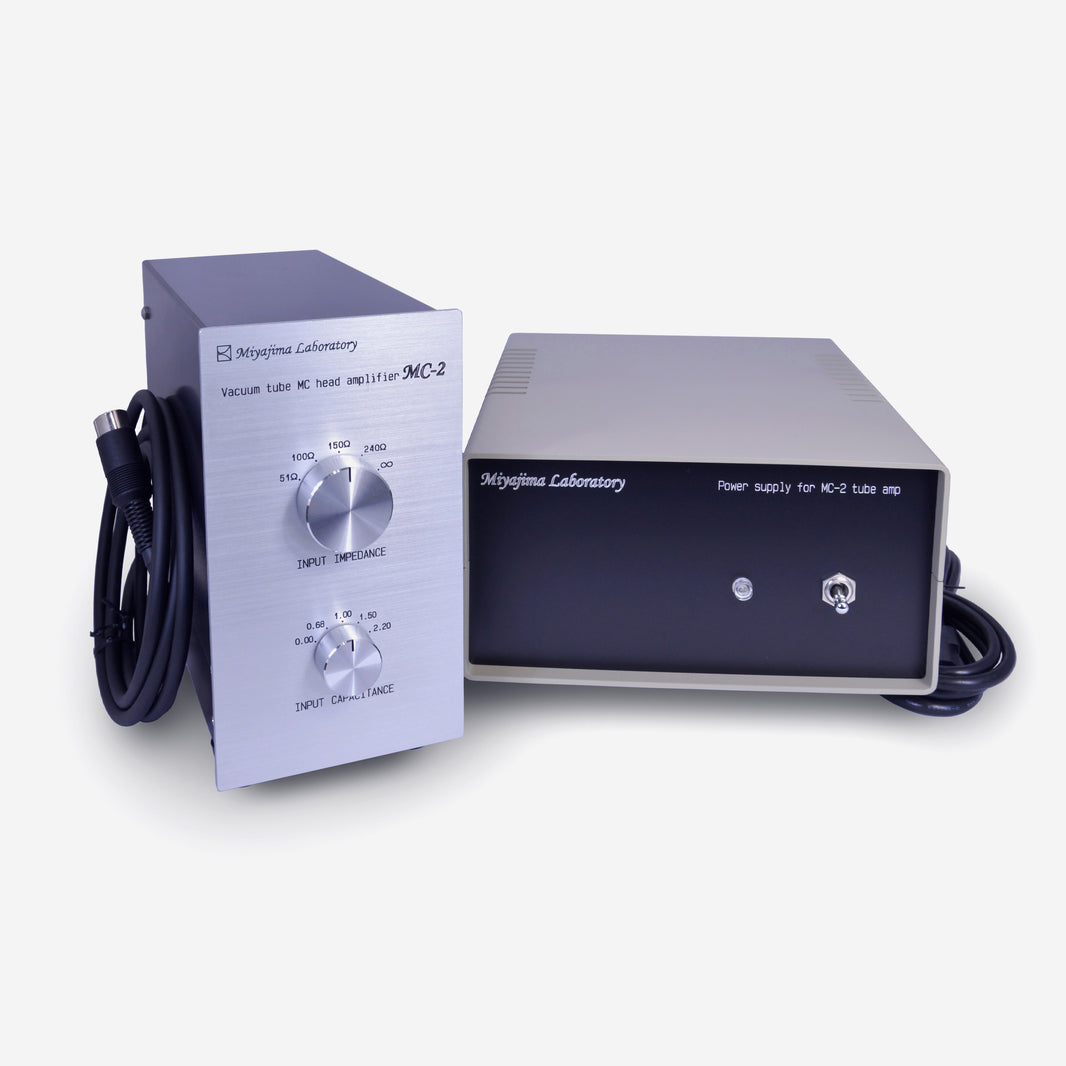

Introducing the Miyajima MC-2
—
The MC-2 is Miyajima’s tube-type MC head amp without the special usage conditions attached to the MC-1. As with the MC-1, Miyajima describe it as a design in which the audio signal does not pass through resistance, aiming for realistic sound quality without the phase-shift limitations they associate with transformers.
The MC-2 supports both low-impedance and high-impedance cartridges, offers two selectable inputs, and provides a choice of input impedance values to suit different cartridges. Miyajima recommend 150 ohms for their stereo cartridges and 51 ohms for their monaural cartridges, while noting that a faint tube noise may be heard at high volume and that RF pickup can occasionally occur in wooden buildings.
—
Designed to feed the MM input of a preamp with a 50k ohm load impedance amplifier.
Specs
| Product Type | MC Head Amplifier |
| Input Impedance | 51 / 100 / 150 / 240 / ∞ ohms |
| Input Capacitance | 0.00 / 0.68 / 1.00 / 1.50 / 2.20 μF |
| Gain | 16 dB (about 40 times) |
| Output Impedance | 2.5k ohms |
| Frequency Response | 20Hz to 120,000Hz (-2dB) |
| Input Terminal | RCA |
| Inputs | 2 inputs (A / B) |
| Connection Cord | DIN cord (about 2m) |
| Vacuum Tubes | 2 × 6922 |
| Main Unit Size | W96 × H185 × D240 mm |
| Main Unit Weight | 1.9 kg |
| Power Supply Size | W200 × H115 × D265 mm |
| Power Supply Weight | 2.6 kg |
| Power Consumption | 5W |
