MC-1
InquireA low-gain vacuum tube MC head amplifier for serious analogue systems...

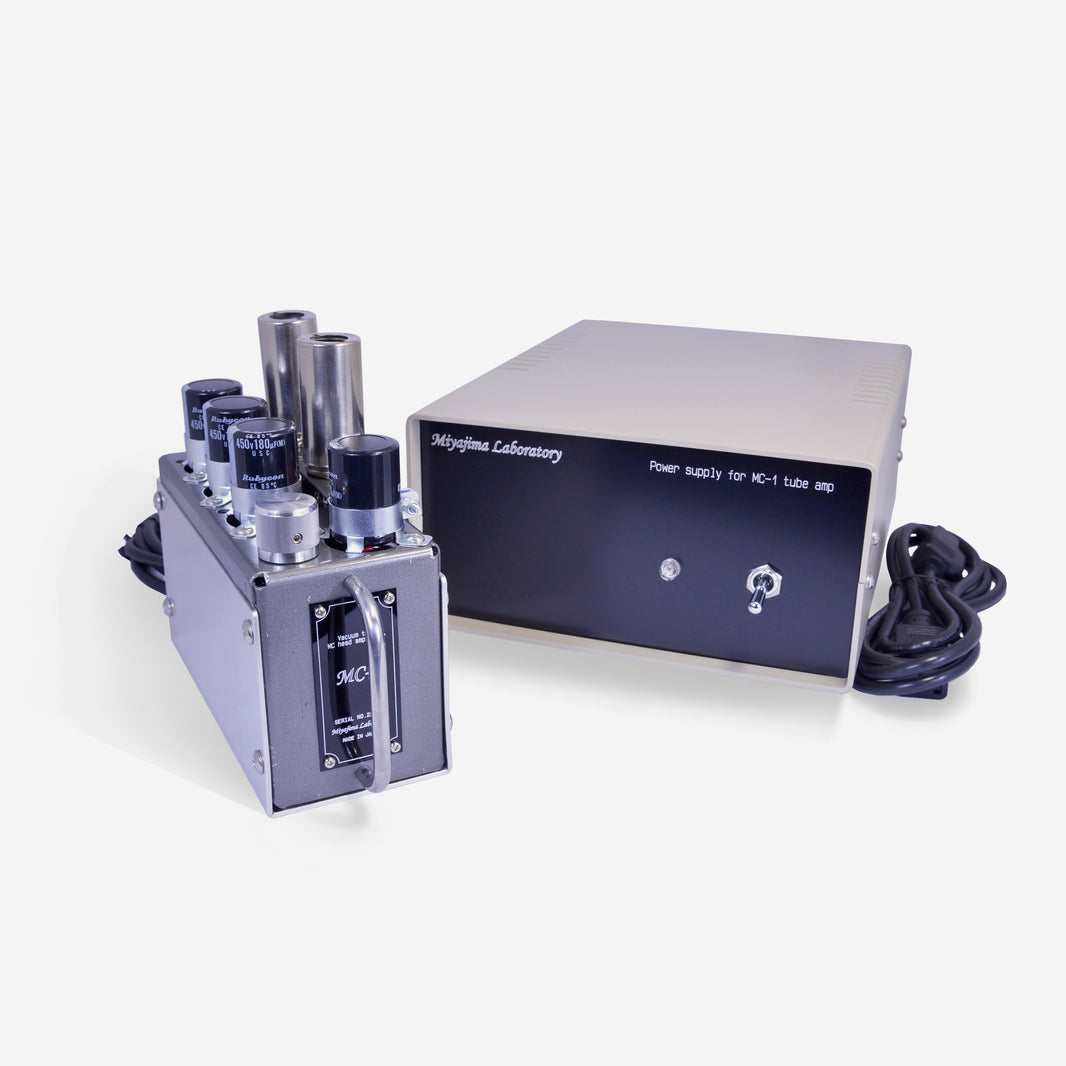

Introducing the Miyajima MC-1
—
The MC-1 is Miyajima’s low-gain tube-type MC head amp, created to avoid what the company sees as the principal sound-degrading elements in audio systems: transistors, transformers and resistors. Miyajima state that the audio signal does not pass through resistance, and that the MC-1 has no phase shift and almost no frequency limit.
It is a highly specialised design with excellent bandwidth and a direct signal path, but it comes with important setup requirements. Because it is a one-stage amplifier, the phase is reversed, and correct use depends on independent shielding between tonearm and phono cable. If hum is excessive, Miyajima specifically advise using the MC-2 instead.
—
Please read the special usage conditions carefully before installation. Both low-impedance and high-impedance cartridges are supported, and Miyajima recommend use with a 50k ohm load impedance amplifier.
Specs
| Product Type | MC Head Amplifier |
| Input Impedance | 60 / 94 / 150 ohms |
| Gain | 13.5 dB (about 22.2 times) |
| Output Impedance | 2.5k ohms |
| Frequency Response | 20Hz to 120,000Hz (-2dB) |
| Input Terminal | RCA |
| Connection Cord | DIN cord (about 2m) |
| Vacuum Tubes | 2 × 7586 (exchangeable to 6922 with voltage switching) |
| Main Unit Size | W75 × H155 × D200 mm |
| Main Unit Weight | 1.1 kg |
| Power Supply Size | W200 × H115 × D265 mm |
| Power Supply Weight | 2.6 kg |
| Power Consumption | 5W |
| Special Requirement | Tonearm shield and phono cable shield must be independent for proper use |
