PS-01
InquireA simple passive control unit for high-output sources...

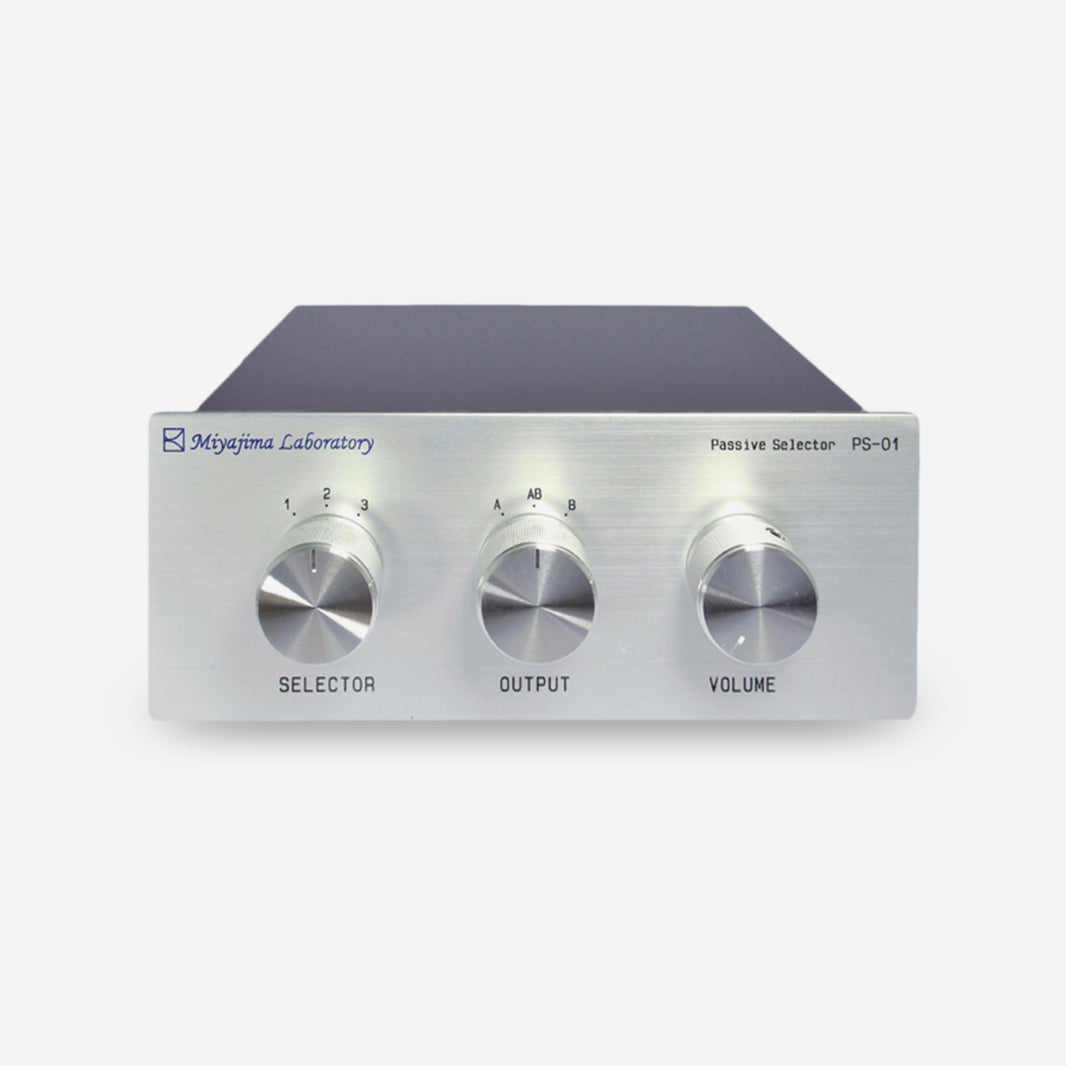

Introducing the Miyajima Passive Selector PS-01
—
The PS-01 is a passive input selector and convenient volume control designed for users who do not need phono equalisation. Miyajima describe it as a passive “pre-amp” with no amplification stage at all, intended for high-output sources such as CD players, tuners, televisions and PCs.
There are three stereo inputs and two stereo outputs, allowing connection to one or two power amplifiers, including use across two rooms if desired. A fixed REC output is also provided, directly connected to the selected input and unaffected by the volume control. Because there is no booster circuit, Miyajima recommend use with a relatively high-gain power amplifier.
—
Power supply not required. This unit does not include phono equalisation and cannot be used to play LPs.
Specs
| Product Type | Passive input selector and volume control |
| Product Name | Passive Selector PS-01 |
| Inputs | 3 stereo line-level inputs |
| Outputs | 2 stereo outputs + fixed REC output |
| Volume Options | 50kΩ type (for vacuum tube amps) / 10kΩ type (for transistor amps) |
| Volume Control | ALPS professional volume control |
| Dimensions | About W150 × H71 × D175 mm (including terminal, knob and foot) |
| Weight | About 820 g |
| Chassis | Aluminum, iron |
| Knob | Aluminum |
| Use Note | Recommended for high-gain power amplifiers; output may be insufficient with low-gain amps |
Our philosophy is to skillfully build superior audio components that will reproduce recorded sound so faithfully, that the artists personality and the emotions in their music are perfectly expressed to the listener. Exceptionally fine audio components will result when music can be reproduced with accuracy and without distortion. When matching theory and musicality, good products are created. We at Miyajima laboratory believe that although we are small, our dedication to the fine details allow us to build the very finest sounding components – ones that will bring you joy every time you to listen to music.
