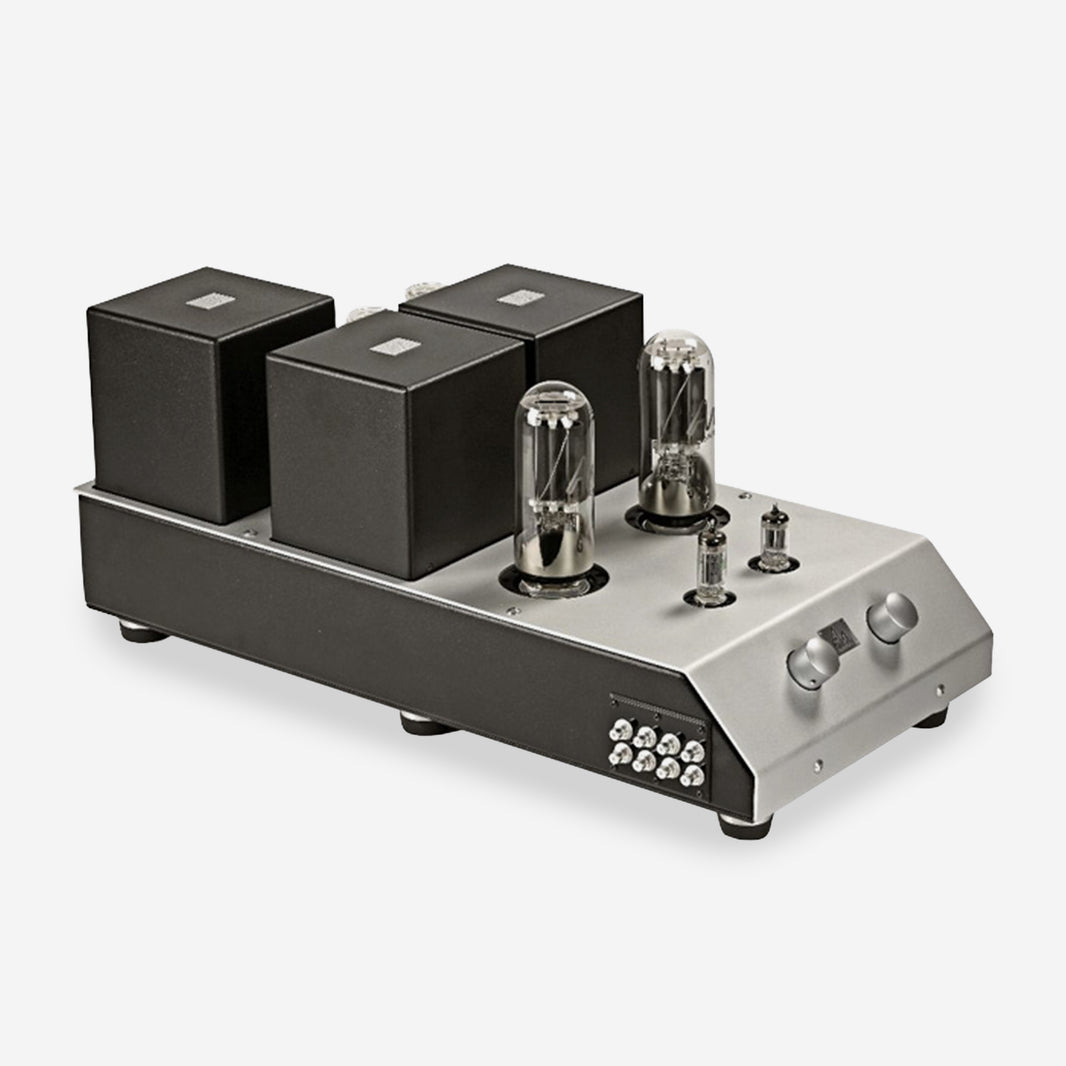

Jinro Integrated Amplifier
InquireThe Audio Note (UK) JINRO Integrated Amplifier iis a Pure Class A Singled Ended valve amplifier that uses the highly regarded 211 triode valve, producing a level of performance that is radically superior to the vast majority of current designs.
It uses the same circuit design and topology as the legendary Audio Note (UK) ONGAKU amplifier. However, where the ONGAKU uses silver wherever possible, such as for all transformer windings, the JINRO instead uses copper.
It has been specifically engineered for sonic performance rather than technical specification, and fulfils all Audio Note (UK) Level 3 criteria: -
Pure Class A operation
Zero Negative Feedback
Single Ended Output Stage
Valve Rectification
Directly Heated Triode operation
Materials and component quality
| INPUT IMPEDANCE | 100K Ohm, line level |
| INPUT SENSITIVITY | 450mV for full output |
| MAXIMUM OUTPUT | 20 Watts (approx.) per channel into 4 or 8 Ohm loads |
| CHANNEL BALANCE | +/- 0.3dB |
| VALVE COMPLEMENT | 2 x 5R4WGB 2 x 211 1 x ECC82 / 5814a 1 x 7044 |
| UNIT WEIGHT | 38 kg |
| UNIT DIMENSIONS | 305mm (h) x 305mm (w) x 640mm (d) |
| MAINS INPUT | AC 100-120V / 220-240V 50/60Hz |
| MAX. POWER CONSUMPTION | 200W |
Audio Note are manufacturers of the finest domestic audio reproduction equipment money can buy, using the best available technology and the finest components. The largest European manufacturer of ultra-performance valve-based audio equipment, Audio Note maintains a world-class standard of quality by keeping as many manufacturing processes in house, including winding their own transformers and foil capacitors.
