ETR-800P
InquireA flexible step-up transformer for a wider range of moving coil cartridges...

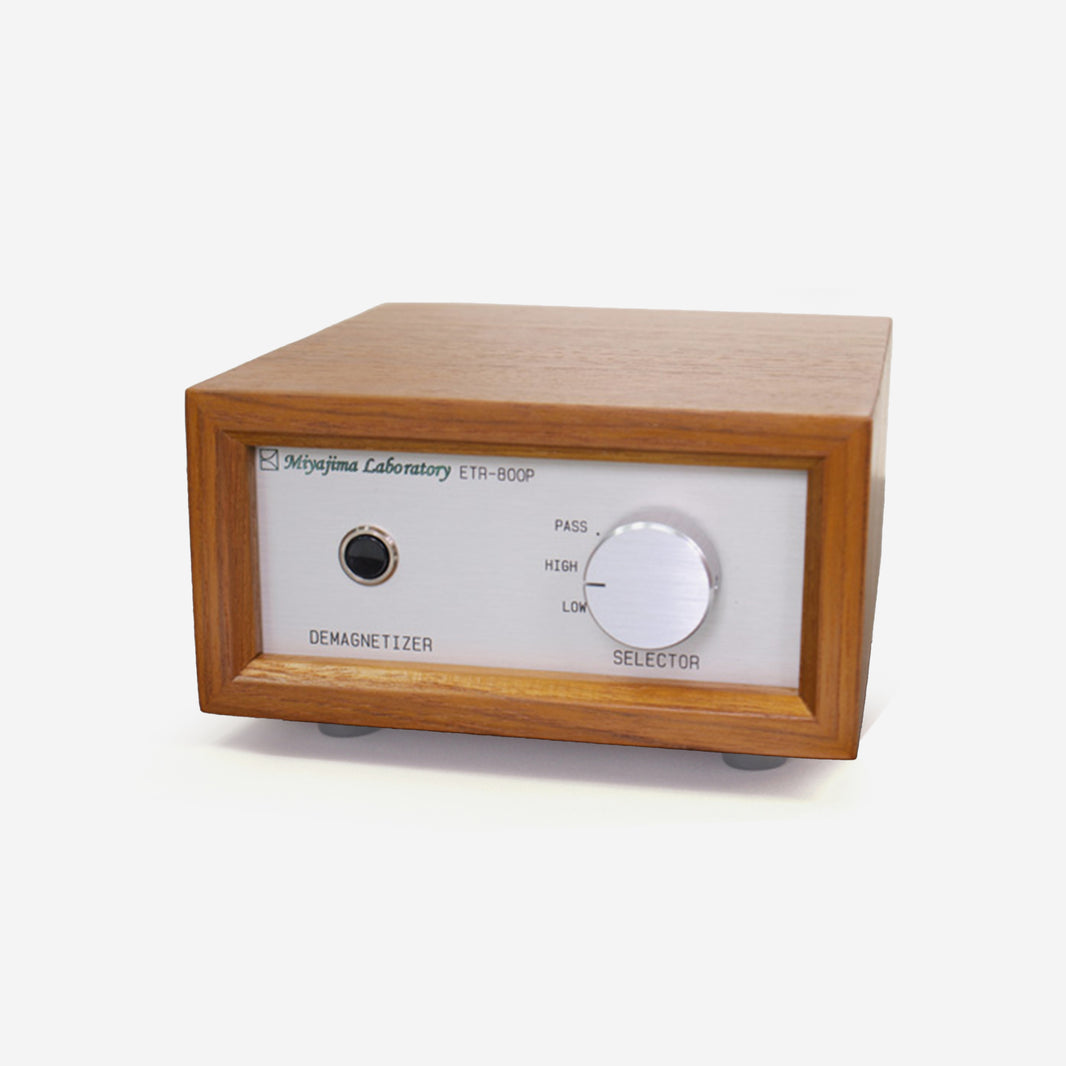

Introducing the Miyajima ETR-800P
—
The ETR-800P is the improved version of Miyajima’s earlier ETR-800, offering switchable settings to accommodate a broader spread of cartridge impedances and gain requirements. It uses the same high-grade construction ideas seen elsewhere in the range, including a teak case, paraffin damping and a permalloy 80 core.
A demagnetisation function is included for both cartridge and transformer, helping maintain clarity and stability over time.
—
Specs
| Product Type | MC Step-up Transformer |
| Input | Low (2 to 20 ohms) / High (20 to 40 ohms) / Pass (50k ohms) |
| Output Impedance | 50k ohms |
| Voltage Up Ratio | Low (33 dB) / High (27 dB) |
| Frequency Range | 10 Hz to 20 kHz |
| Demagnetization | For both cartridge and transformer |
| Dimensions | W150 × H85 × D180 mm |
| Weight | 1.3 kg |
| Case | Teak |
| Caulking Material | Paraffin |
| Core Material | Permalloy 80 |
Our philosophy is to skillfully build superior audio components that will reproduce recorded sound so faithfully, that the artists personality and the emotions in their music are perfectly expressed to the listener. Exceptionally fine audio components will result when music can be reproduced with accuracy and without distortion. When matching theory and musicality, good products are created. We at Miyajima laboratory believe that although we are small, our dedication to the fine details allow us to build the very finest sounding components – ones that will bring you joy every time you to listen to music.
