EC-5
InquireA vacuum tube preamplifier built with LP replay firmly in mind...

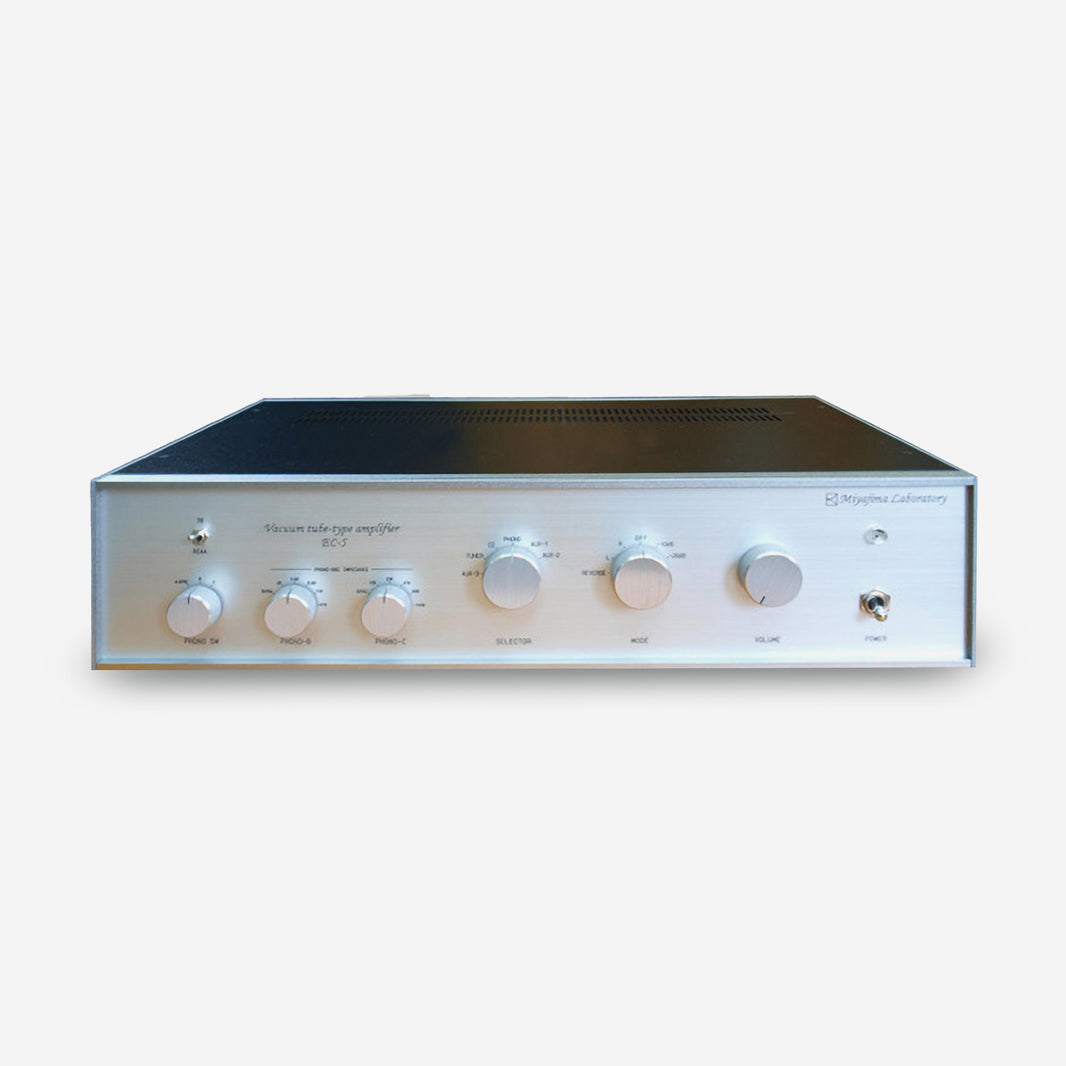

Introducing the Miyajima EC-5
—
The EC-5 is a vacuum tube preamplifier designed with particular attention to analogue replay and front-panel usability. Miyajima state that its circuit is thought about for LP playback, and the unit supports three separate phono inputs for multiple players, alongside a total of six input circuits overall.
The preamp offers both RIAA and 78rpm equalisation options, variable input impedance for phono inputs B and C, a convenient mode switch including single-channel and LR reverse output, gain adjustment, direct and volume-controlled outputs, and a direct REC terminal. Internally, the signal system is wired with a single wire and kept physically distant from the power-supply-related cable to preserve transparency, strength and stability.
—
Specs
| Product Type | Preamplifier |
| Weight | About 8.5 kg |
| Dimensions | About H110 × W430 × D310 mm (including terminal) |
| Vacuum Tubes | 2 × 12AX7 (5751), 3 × 12AU7 (6189) |
| Phono Inputs | 3 circuits |
| Total Inputs | 6 circuits |
| Equalisation | RIAA / 78rpm switchable |
| Phono Input A | 47kΩ standard |
| Phono Input B | 600–47kΩ adjustable |
| Phono Input C | 600–100kΩ adjustable |
| Mode Switch | Includes single-channel output and LR reverse output |
| Gain Adjustment | Includes -10dB and -26dB useful for trimming and mute |
| Outputs | DIRECT output and VOLUME output |
| REC Terminal | Direct output unaffected by volume |
| Terminals | Gold-plated |
| Knobs | Aluminum |
| Chassis | Aluminum hairline front and back, hammer-tone sides, black-painted metal top and bottom |
Our philosophy is to skillfully build superior audio components that will reproduce recorded sound so faithfully, that the artists personality and the emotions in their music are perfectly expressed to the listener. Exceptionally fine audio components will result when music can be reproduced with accuracy and without distortion. When matching theory and musicality, good products are created. We at Miyajima laboratory believe that although we are small, our dedication to the fine details allow us to build the very finest sounding components – ones that will bring you joy every time you to listen to music.
