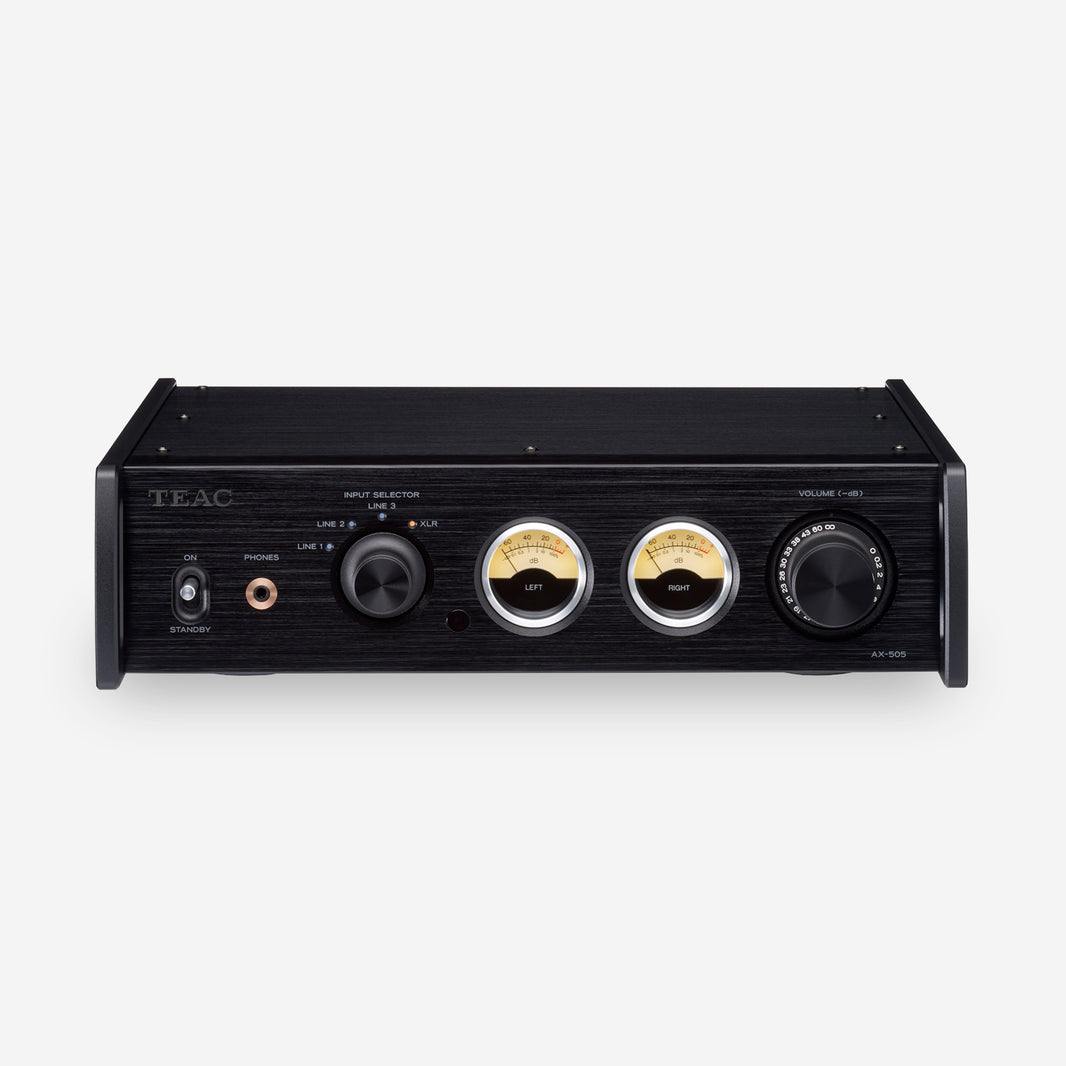

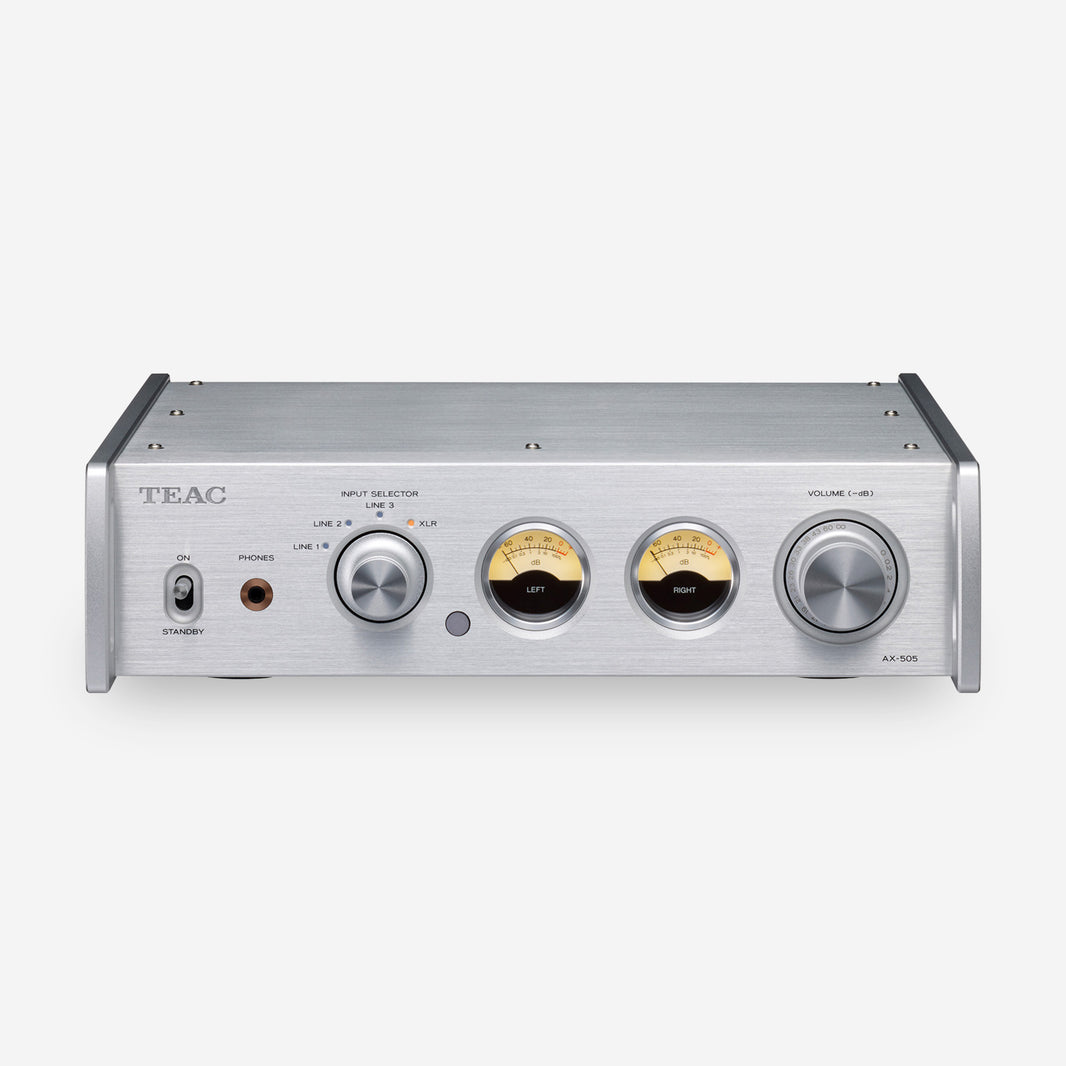

AX-505 - Stereo Integrated Amplifier
InquireDelivering all the dynamics of your music, a high performance integrated amplifier with balanced input capability.
The AX-505 is a stereo integrated amplifier that delivers 130W + 130W of output power but occupies just an A4-size footprint.
In the power amplifier section we’ve employed a cool-running and energy-efficient option, a TEAC-tuned Ncore module by Hypex from Netherlands. Its clear sound with low distortion and high Signal-to-Noise ratio reproduces Hi-Res audio content with true dynamism and musical verve.
In addition, the AX-505 also provides high quality headphone listening, via an integrated headphone amplifier, one that that supports ‘ground separate’ connection.

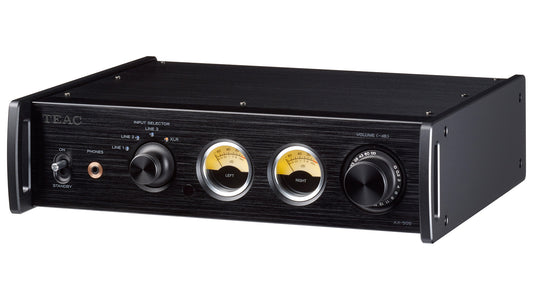

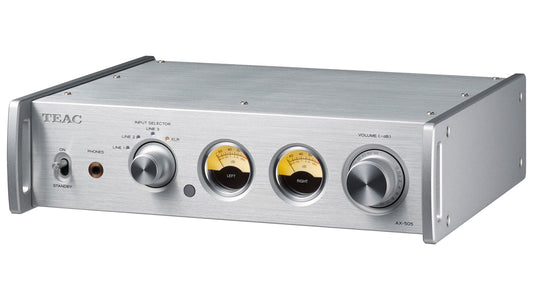

Admittedly more ‘eye-candy’ than a functional necessity, a pair of eye-catching level meters on the front panel track musical volume levels as they ebb and flow. The user experience is further enhanced by the presence of a well-damped volume control finished with a machined aluminum knob for precise volume adjustment. A Passive-cooling design, for completely silent operation, allows the listener to focus on their music without the distraction of irritating fan noise
Combine this state-of-the-art stereo integrated amplifier with TEAC's latest standalone DAC unit, the UD-505, or the NT-505 USB DAC/Network Player and you can revel in all the benefits of high-spec, Hi-Res audio, such as DSD512 and PCM 768kHz content.
| Technical Specifications | |
|---|---|
| Amplifier section | |
| Maximum output power | 130W + 130W (4Ω, 1kHz, JEITA) 90W + 90W (8Ω, 1kHz, JEITA) |
| Rated output power | 115W + 115W (4Ω, 1kHz, THD 0.8%) 70W + 70W (8Ω, 1kHz, THD 0.8%) |
| Total harmonic distortion | 0.002% (8Ω, 1kHz, 12.5W, JEITA) |
| S/N ratio | 110dB (8Ω, 1kHz, IHF-A) |
| Frequency response | 10Hz to 50,000Hz (+0dB, –5dB, 8Ω, 1W, JEITA) |
| Damping factor | 370 or higher (20Hz to 20kHz, 8Ω load) |

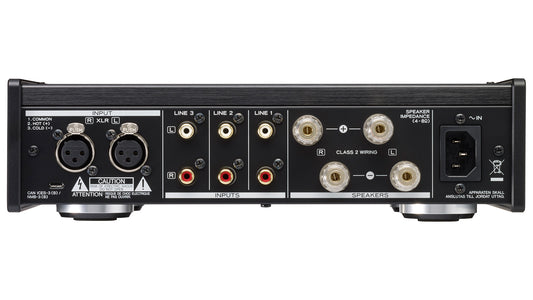

| Analog audio inputs | |
| Balanced (LINE IN) | Connector: XLR × 1 pair Maximum input level: 3Vrms Input impedance: 10kΩ or higher |
| Unbalanced (LINE IN) | Connector: RCA Pin (gold-plated) × 3 pairs Maximum input level: 2.5Vrms Input impedance: 10kΩ or higher |
| Speaker outputs | |
| Connector | Screw type (gold-plated, AWG8 and banana plug compatible) |
| Compatible speaker impedance | 4Ω to 8Ω |
| Headphone outputs | |
| Connector | 3.5mm 4-pole stereo mini jack (ground separate) |
| Maximum output power | 360mW + 360mW (32Ω loaded, THD 10%) |
| Frequency response | 5Hz to 150kHz (–3dB) |
| Total harmonic distortion | 0.003% |
| S/N ratio | 115dB |
| Power | |
| AC120V, 60Hz AC220 - 240V, 50/60Hz |
|
| Power consumption | 110W |
| Standby power | 0.1W or less (Auto power-saving mode) |
| Overall dimensions | 290 (W) × 81.2 (H) × 264 (D) mm (including protrusions) |
| Weight | 4.2kg |
| Operating temperature | ＋5℃ to ＋35℃ |
| Operating humidity range | 5% to 85% (no condensation) |
| Storage temperature range | –20℃ to ＋55℃ |
| Included accessory | Power cord, Remote control (RC-1332), AAA batteries × 2, Owner's manual |
