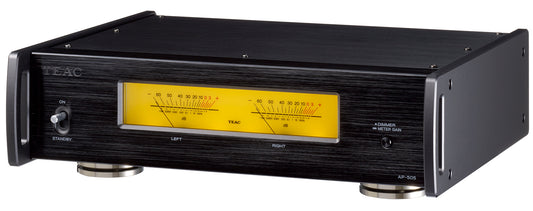

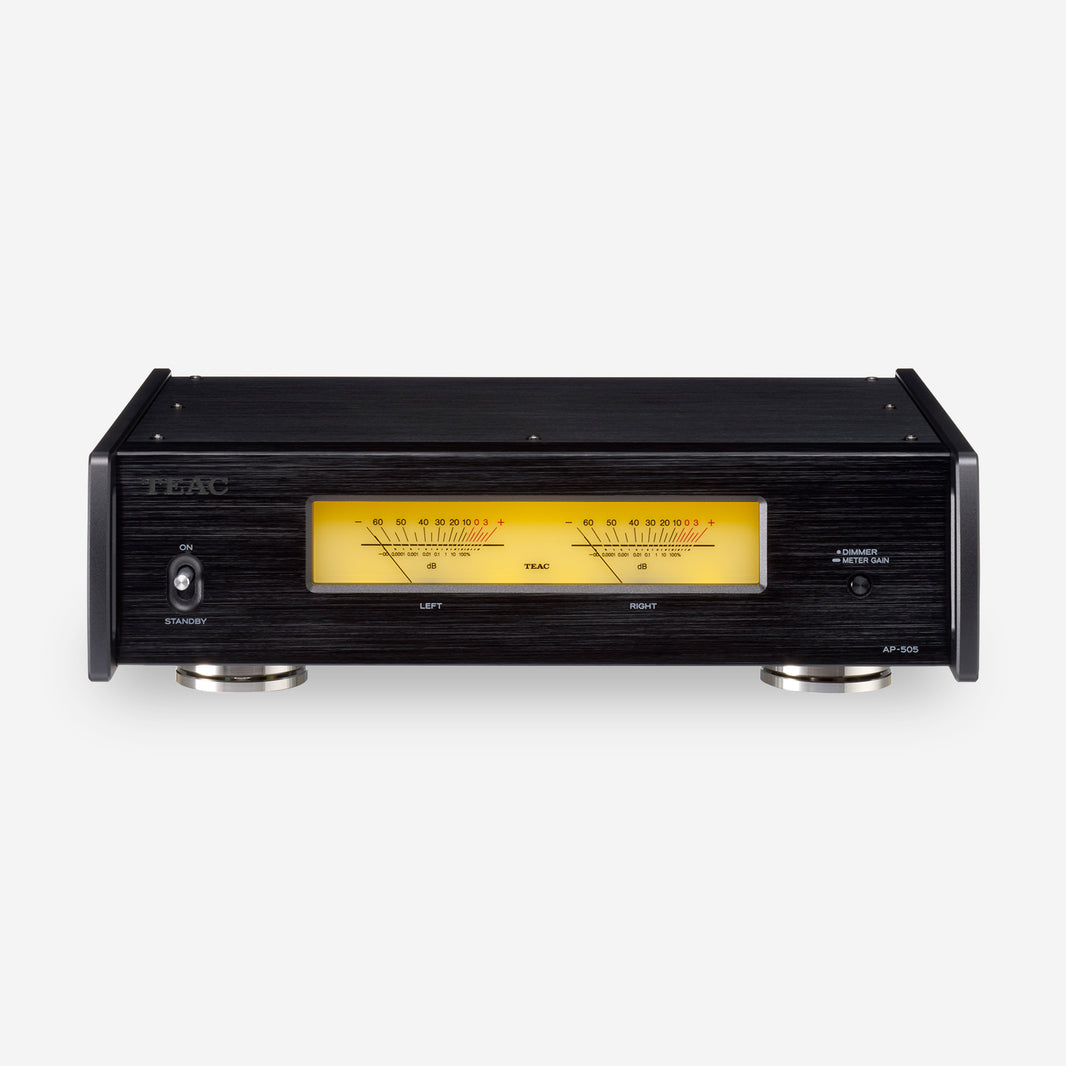

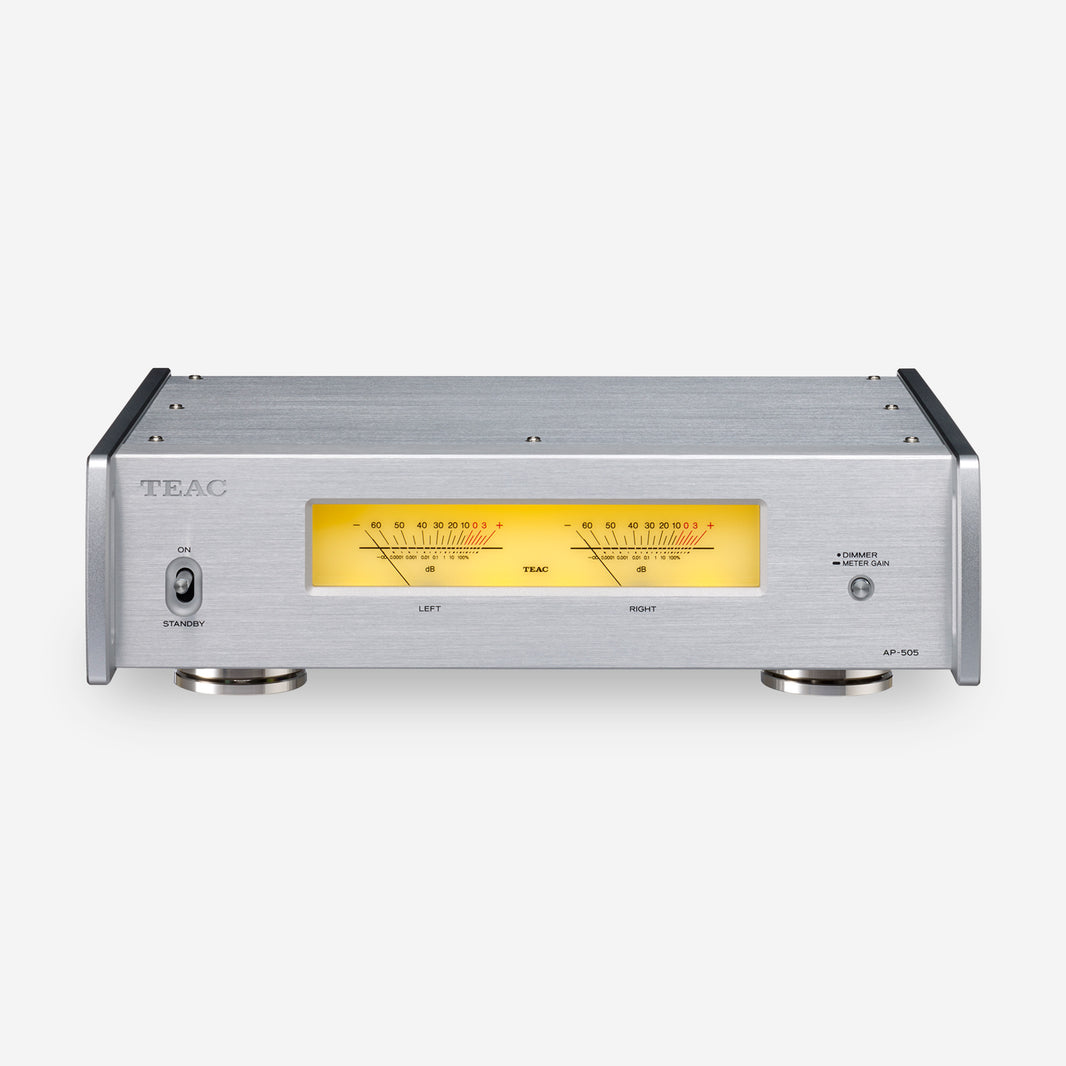

AP-505 - Stereo Power Amplifier
InquireAn ultra-compact stereo power amplifier, powered by Hypex Ncore technology,
designed to enable Bi-amping, or use in BTL (Bridge Tied Load/Bridged) mode.
The AP-505 is a versatile stereo power amplifier based around a high-performance, TEAC-tuned, Hypex Ncore power amplifier module, housed within a compact and elegant case.
Capable of operating in bi-amp and BTL (Bridge Tied Load/Bridged) modes, in addition to conventional stereo operation, the AP-505 produces a maximum 130W + 130W of output power in stereo/bi-amp modes and 250W in BTL/bridged mode. At its heart is an Ncore power amplifier module, made by Hypex of the Netherlands and specially tuned by TEAC’s R&D team, for superlative sound quality
As for the exterior, lightweight aluminum-alloy panels cover a robust steel chassis. A pair of large level meters add visual interest when the amplifier is in action, while TEAC's patent-pending ‘Pin-point’ feet, located at three strategic positions on the underside, add incision to the sound, helping to create a more detailed and stable stereo image.
| Technical Specifications | |
|---|---|
| Amplifier section | |
| Maximum output power | Stereo, Bi-amp modes: 130W + 130W (4Ω, 1kHz, JEITA) 90W + 90W (8Ω, 1kHz, JEITA) BTL (Bridge) mode: 250W (8Ω, 1kHz, JEITA) |
| Rated output | Stereo, Bi-amp modes: 115W + 115W (4Ω, 1kHz, THD 0.8%) 70W + 70W (8Ω, 1kHz, THD 0.8%) BTL (Bridge) mode: 220W (8Ω, 1kHz, THD 0.8%) |
| Total harmonic distortion | 0.0015% (8Ω, 1kHz, 12.5W, JEITA) |
| S/N ratio | 113dB (8Ω, 1kHz, IHF-A) |
| Frequency response | 10Hz to 50,000Hz (+0dB, –5dB, 8Ω, 1W, JEITA) |
| Damping factor | 370 or higher (20Hz to 20kHz, 8Ω load) |

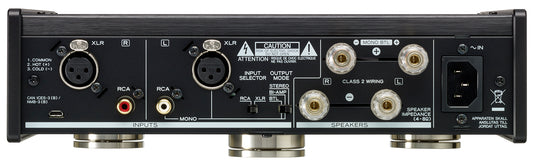

| Analog audio inputs | |
| Balanced (LINE IN) | Connector: XLR (2: HOT) × 1 pair Input sensitivity: 1.3V (Output 8Ω, THD 1%) Input impedance: 10kΩ or higher |
| Unbalanced (LINE IN) | Connector: RCA Pin (gold-plated) × 1 pair Input sensitivity: 0.66V (Output 8Ω, THD 1%) Input impedance: 10kΩ or higher |
| Speaker outputs | |
| Connector | Screw type × 1 set (gold-plated, AWG8 and banana plug compatible) |
| Compatible speaker impedance | Stereo, Bi-amp modes: 4Ω to 16Ω BTL (Bridge) mode: 8Ω to 16Ω |
| Power | |
| AC120V, 60Hz AC220 - 240V, 50/60Hz |
|
| Power consumption | 106W |
| Standby power | 0.1W or less (Auto power-saving mode) |
| Overall dimensions | 290 (W) × 84.5 (H) × 271 (D) mm (including protrusions) |
| Weight | 4.4kg |
| Operating temperature | ＋5℃ to ＋35℃ |
| Operating humidity range | 5% to 85% (no condensation) |
| Storage temperature range | –20℃ to ＋55℃ |
| Included accessory | Power cord × 1 Owner's manual (including warranty) |
