AMP-F10

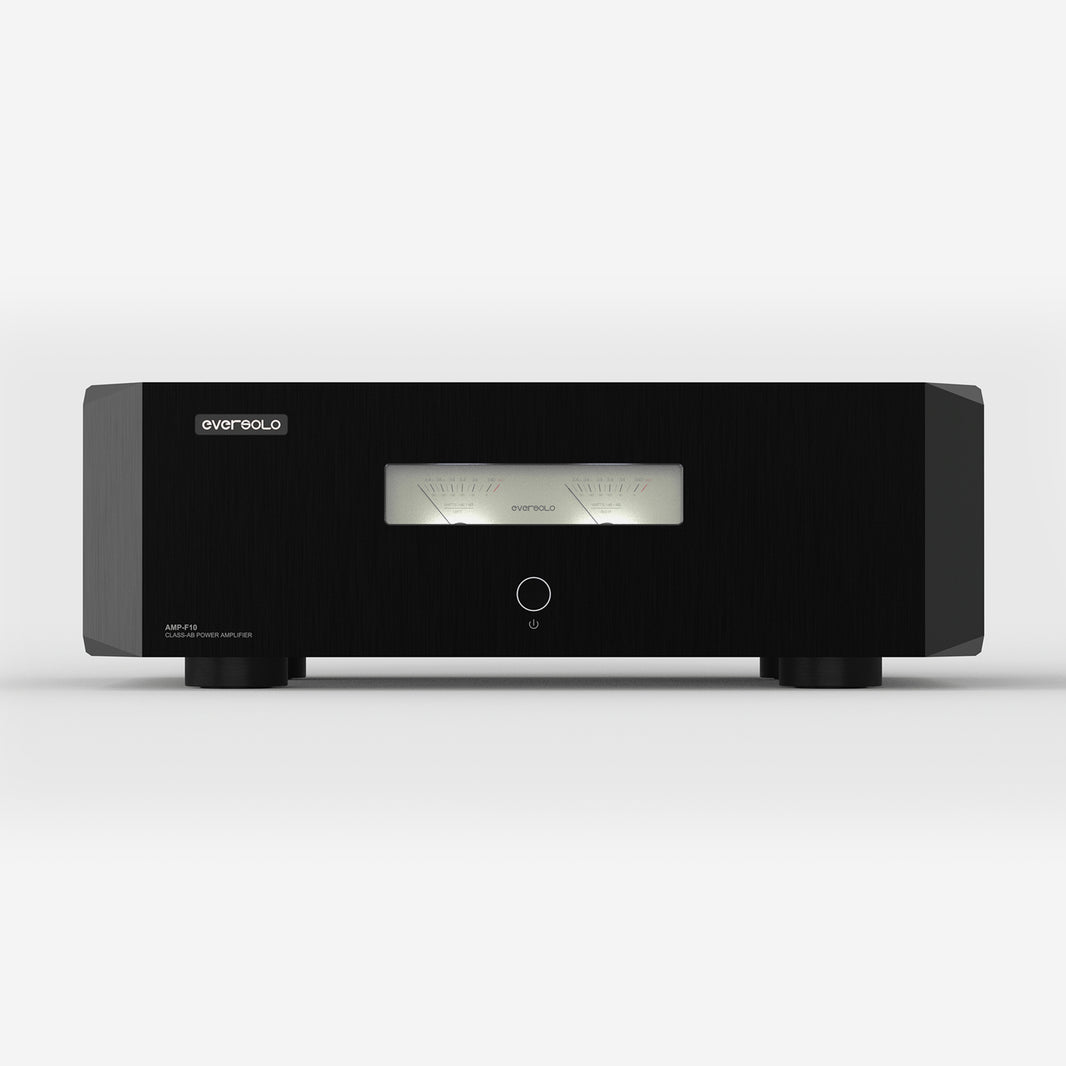

Eversolo AMP-F10 High-Power Class AB Stereo Power Amplifier

—

The Eversolo AMP-F10 is a high-current Class AB power amplifier with Class A bias, delivering 200W per channel into 8Ω and up to 950W in bridged operation. Its balanced inputs, selectable gain, high damping factor and robust protection systems make it suitable for demanding high-end loudspeakers.

—

The AMP-F10 is designed for systems that require high output power without sacrificing low-level detail and tonal refinement. Its Class AB topology operates with Class A bias at lower output levels before transitioning to efficient Class AB operation as power demand increases.

Independent left and right amplifier sections help maintain channel separation and stable stereo imaging. Large heatsinks provide passive thermal management during extended listening, while overcurrent, overtemperature and short-circuit protection safeguard the amplifier and connected loudspeakers.

In stereo mode, the AMP-F10 provides 200W per channel into 8Ω, 320W into 4Ω and 450W into 2Ω. Bridge mode converts it into a powerful mono amplifier capable of delivering 650W into 8Ω or as much as 950W into 4Ω.

Balanced XLR and unbalanced RCA inputs are provided, with selectable 23dB or 29dB gain to accommodate different preamplifier output levels and loudspeaker sensitivities. A damping factor greater than 600 helps the amplifier maintain firm control over loudspeaker movement, particularly at low frequencies.

Trigger input and output support coordinated power control, while signal-sensing mode can place the amplifier into standby after an extended period without an audio signal.

—

Key features

• High-power Class AB stereo amplifier with Class A bias
• 200W per channel into 8Ω
• 320W per channel into 4Ω
• 450W per channel into 2Ω
• Up to 950W in bridged mono operation

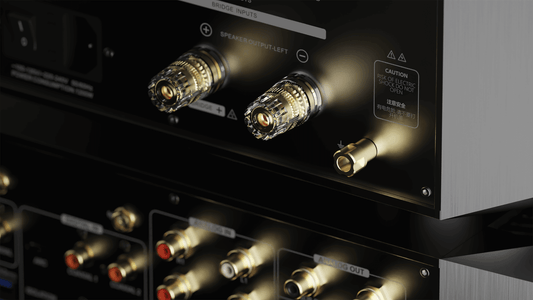

• Balanced XLR and unbalanced RCA inputs
• Selectable 23dB or 29dB gain
• Independent left and right amplifier sections
• Published damping factor greater than 600

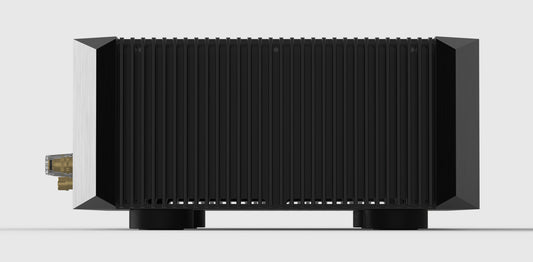

• Large passive heatsinks

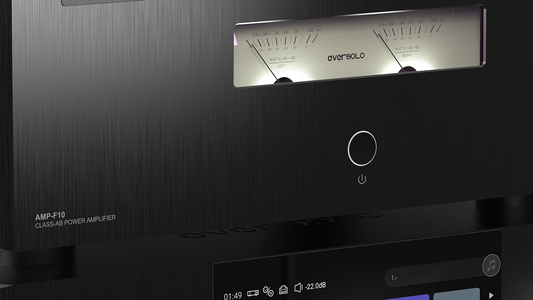

• Front-panel VU meter
• Trigger input and output
• Signal-detection standby mode
• Overcurrent, overtemperature and short-circuit protection
• Full-width aluminium chassis

—

* The AMP-F10 is a power amplifier and requires a preamplifier or variable-output source. Its underside voltage selector must be set correctly for the local mains supply. Bridge mode should only be used with loudspeakers capable of accepting the amplifier’s output power and specified load.
